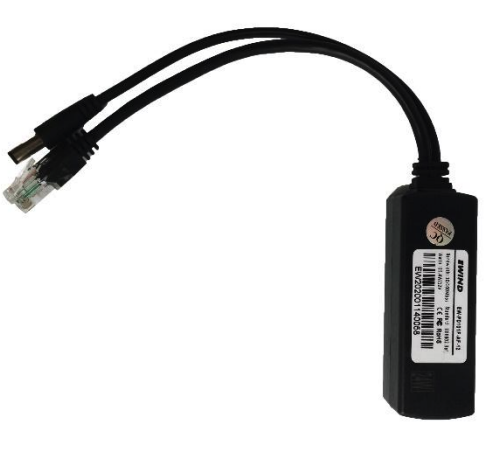

The 10/100M PoE Splitter Cable is a PoE injector we recommend for powering the Cloud Connector (2nd Gen) via Ethernet. It features protection against short circuits, overcurrent, and overheating.
The device is RoHS compliant and meets the IEEE 802.3af standard.
Datasheets
Datasheet 10/100M PoE Splitter cable
Specifications
| Operating conditions | |
| Temperature | -20 to +60℃ |
| Humidity | 20 to 80% RH |
| Power | |
| Voltage Input | 44 - 57V |
| Voltage Output | DC5V2.4A |
| Rating Power Output | 12W |
| Connector | 1x RJ45 input port 1x RJ45 output port |
| Other | |
| Length | 190 mm |
