This article explains how to display and visualize CO2 data from sensors on the Project Dashboard. The only supported card type for CO2 data is a Single sensor card.
Who is this article for?
DT Studio users who want to visualize CO2 sensor readings on the Project Dashboard.
What do you need?
Permission: A user role of Project Developer or higher.
Single sensor card
To show CO2 readings on a single sensor card, use a CO2 sensor.

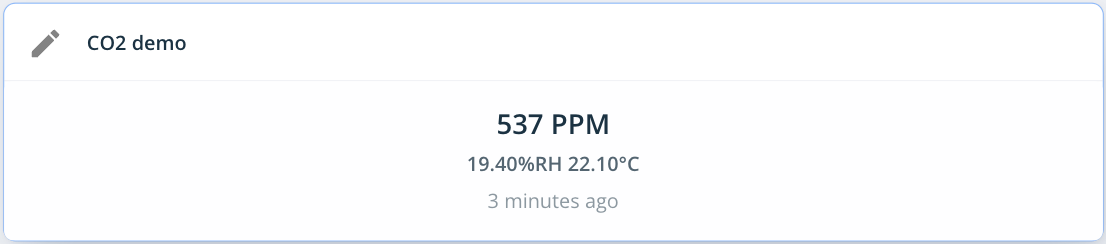

In a 1x1 view, the card displays the current CO2 readings in PPM, along with Temperature and Humidity readings.
If expanded, the graph type depends on the view you choose. By clicking the three dots, you can change the view to:
- Heatmap
- Time series

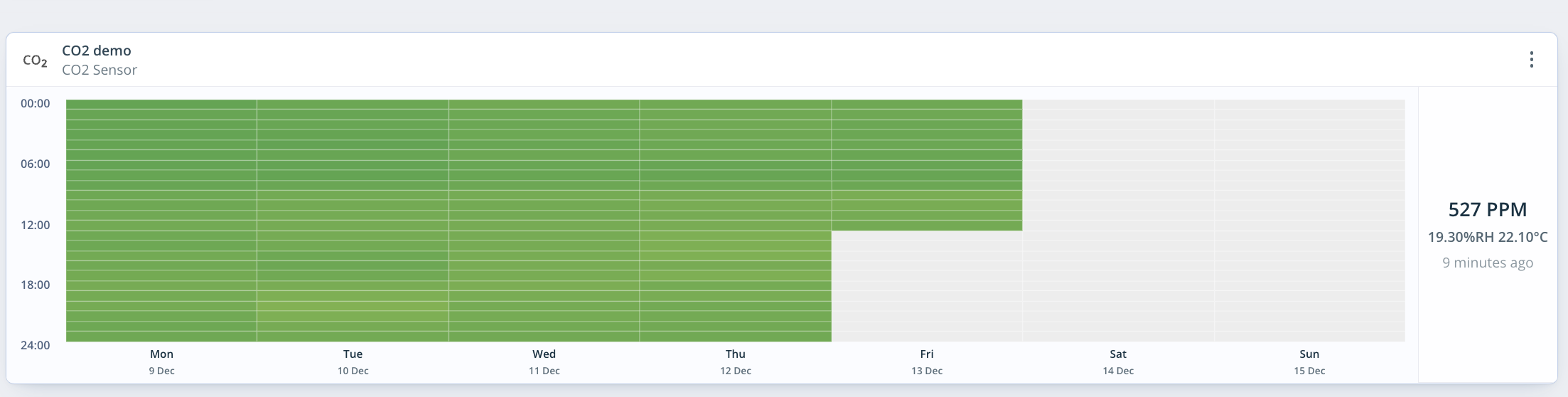

In the heatmap view, the x-axis displays dates while the y-axis represents hours. Colors indicate CO2 levels:
- Cool colour tones (green) = good or excellent levels
- Warm colour tones (yellow/red) = acceptable/mediocre or unhealthy levels
The scale ranges from 0 to 2000 PPM, with levels categorized as follows:
- 0 to 800 PPM indicates good or excellent levels
- 800 to 1500 PPM is considered acceptable or mediocre
- Levels above 1500 PPM are regarded as unhealthy
To toggle the display of the sensor's current readings, click the three dots and select "Hide/Show Sensor Status" on the upper right side of the card.

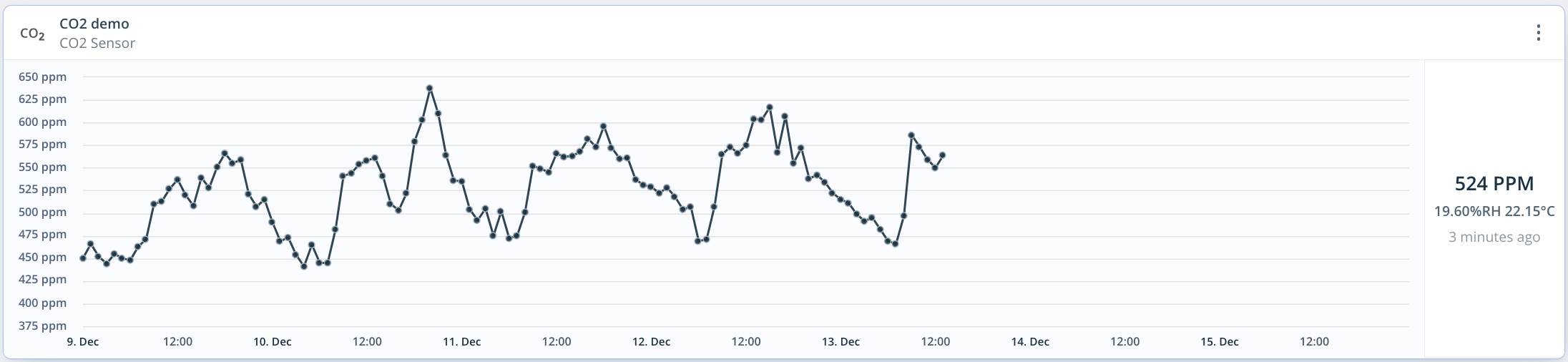

In the time series, the x-axis displays dates while the y-axis represents PPM levels. The line on the graph shows only CO2 readings. To display temperature or humidity readings, visit: How to display temperature and humidity readings from CO2 sensors on Dashboard graphs.
Creating a CO2 card
To add a new CO2 card, select Create new card:
- Choose card type: Single sensor card
- Choose a name for the card (optional)
- Pick a sensor
- Set card size
- Click Add to dashboard
You will find the newly created card in the first available position on the dashboard.
