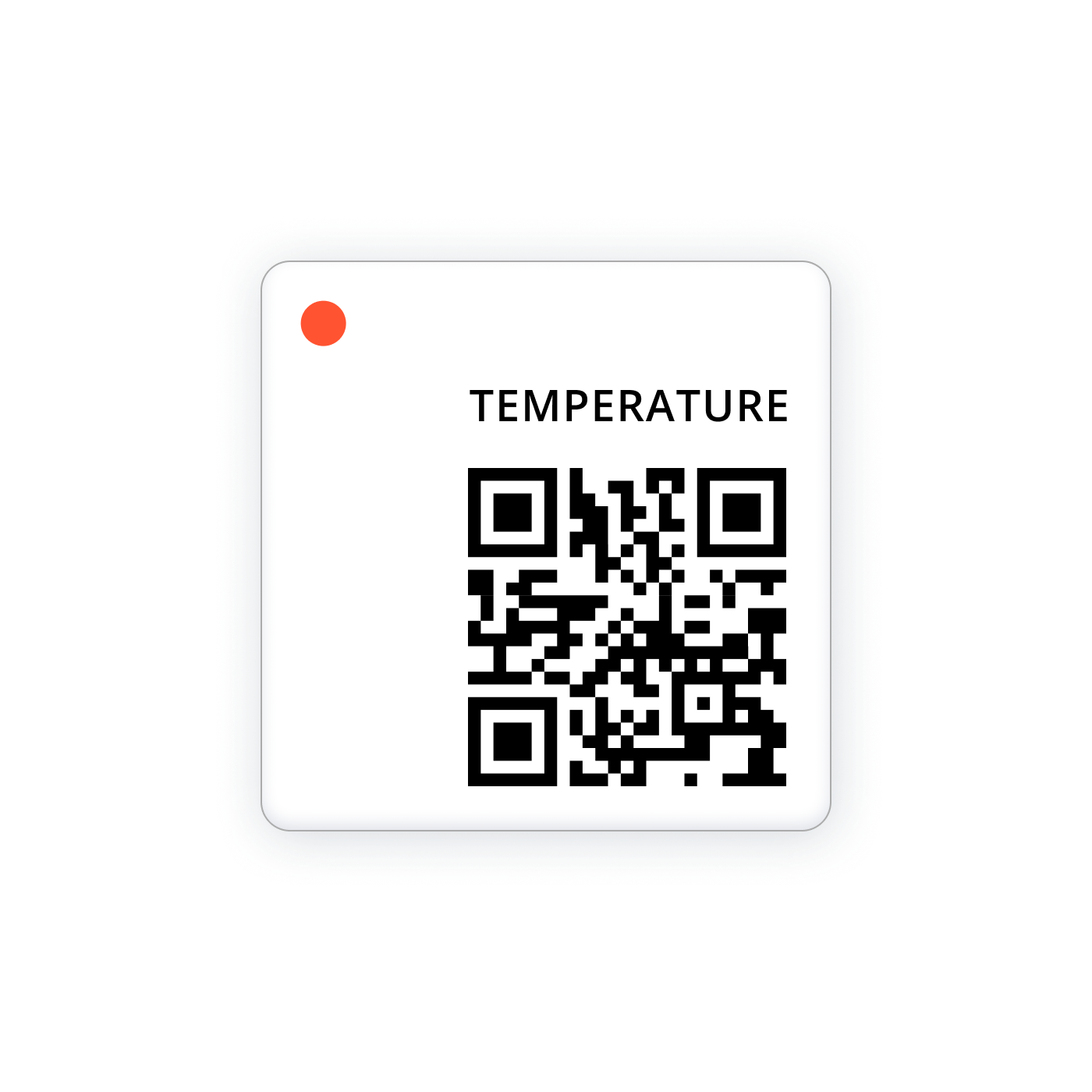

The Wireless Temperature Sensor measures the surrounding temperature and wirelessly transmits the result to nearby Cloud Connectors (gateways) at a predetermined Heartbeat Interval (HBI) via the SecureDataShot™ protocol. Cloud Connectors relay sensor data to the cloud via cellular or ethernet connectivity. From the cloud, the data can be integrated into other services using REST APIs and webhooks or viewed directly in DT Studio.
The Wireless Temperature Sensor uses HBI to transmit a message notifying the system that it is present and operational, which can be set to 15 min, 30 min, 45 min, or 60 min.
The Wireless Temperature Sensor has touch functionality for simple installation and use.
This sensor comes in two versions: EU and US, each tailored to meet distinct regional certifications, compliances, and wireless communication requirements.
Datasheets
Datasheet Wireless Temperature Sensor EU 100118 (No longer available for purchase)
Datasheet Wireless Temperature Sensor US 100583 (No longer available for purchase)
Datasheet Wireless Temperature Sensor EU QR 102058 (No longer available for purchase)
Datasheet Wireless Temperature Sensor US QR 102090 (No longer available for purchase)
Specifications
| Operating conditions | |
| Temperature | -40 to 85 °C / -40 to 185 °F |
| Humidity at 25 °C / 77 °F | 0 to 100% RH (non-condensing) |
| Wireless communication | |
| EU / US | 868 MHz SRD/ISM band / 915 MHz ISM band, SecureDataShot™ |
| Range | |
| Indoor / with Range Extender | up to 40 m | 131 ft / up to 150 m | 492 ft |
| Battery | |
| Battery type | Lithium |
| Replaceable battery | No |
| Lifetime | Up to 15 years in the default configuration and standard environment |
| Other | |
| Size and weight | 19 x 19 x 2.5 mm, 2.0 g / 0.75 x 0.75 x 0.11 in, 0.07 oz |
| Construction | Impact-modified acrylic film, sealed, IP68 and UL 50E Type 4X |
| Data Backfill | No |
