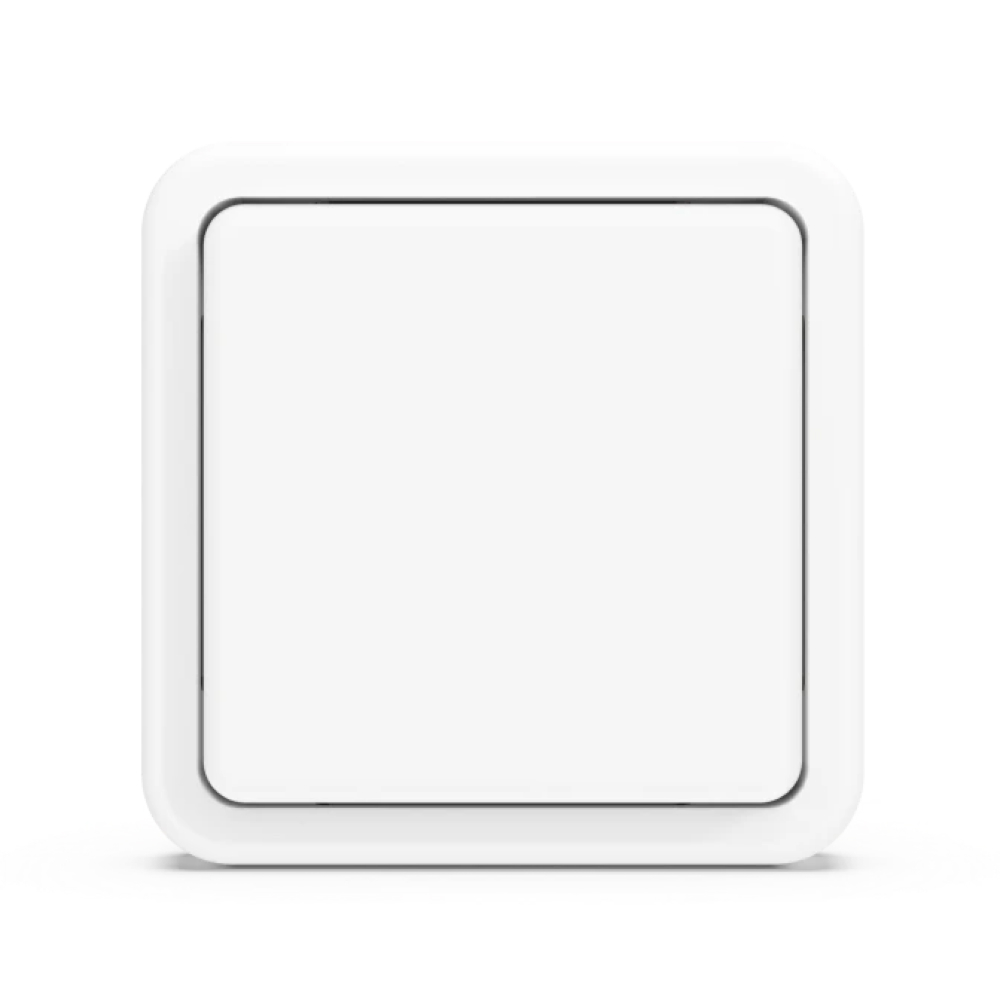

The Wireless Tactile Touch Sensor detects when the sensor is pressed and gives audible and tactile feedback to the user. A press will result in a wireless message being sent via SecureDataShot™ technology to the Cloud Connector (Gateway), notifying the user about the event. The Cloud Connector then relays the event notification onward to a cloud server.
The Wireless Tactile Touch Sensor uses Heartbeat Interval (HBI) to transmit a message notifying the system that it is present and operational, which can be set to 15 min, 30 min, 45 min, or 60 min.
EU and US variants
This sensor is available in two variants, one for the EU and one for the US, due to different certifications, compliances, and wireless communication.
Specifications
Operating conditions | |
Temperature range | -40 to 85 °C / -40 to 185 °F |
Recommended temperature range | -25 to 50 °C / -13 to 122 °F, non condensing |
Humidity at 25 °C / 77 °F | 0 to 100% relative humidity |
Wireless communication | |
EU | 868 MHz ISM band, SecureDataShot™ |
US | 915 MHz ISM band, SecureDataShot™ |
Certifications and compliance | |
EU | CE, WEEE, Batteries directive |
US | Certified to FCC and ISED regulations FCC ID: 2ATFX-100541 IC: 25087-100541 |
Other | |
Recommended storage conditions | Cool and dry, near normal room temperature |
Construction | ABS |
Size and weight | 26 x 26 x 5.9 mm, 5.0 g |
Lifetime | Up to 15 years in the default configuration and standard environment |
Wireless Range | |
Indoor | 25 m | 82 ft 40 m | 131 ft w/Cloud Connector (2nd Gen) |
Product numbers and datasheets | |
101594 | Wireless Tactile Touch Sensor EU Datasheet Wireless Tactile Touch Sensor EU 101594 |
101643 | Wireless Tactile Touch Sensor US Datasheet Wireless Tactile Touch Sensor US 101643 |
See the datasheet for detailed specifications.
