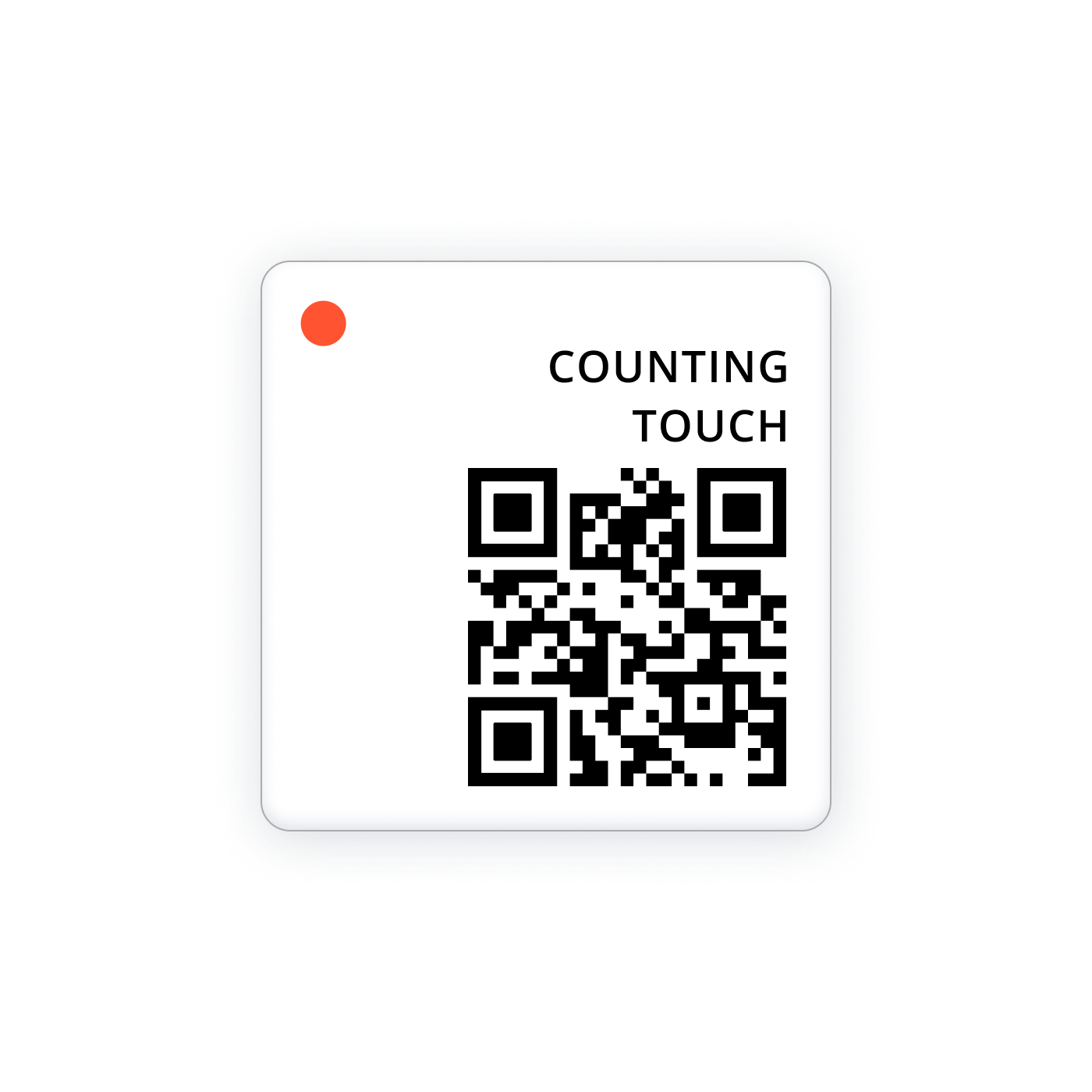

The Wireless Counting Touch Sensor detects when the sensor is touched. A touch will increment an internal counter, and the cloud server is updated with the count number at periodic intervals. Wireless messages are sent via SecureDataShot™ technology to the Cloud Connector (Gateway). The Cloud Connector relays the information onward to the cloud server.
The Wireless Counting Touch Sensor uses Heartbeat Interval (HBI) to transmit a message notifying the system that it is present and operational, which can be set to 15 min, 30 min, 45 min, or 60 min.
An immediate message is transmitted if the sensor is touched and held for approximately 4 seconds, allowing real-time sensor testing.
EU and US variants
This sensor is available in two variants, one for the EU and one for the US, due to different certifications, compliances, and wireless communication.
Specifications
| Operating conditions | |
| Temperature range | -40 to 85 °C / -40 to 185 °F |
| Recommended temperature range | -25 to 50 °C / -13 to 122 °F, non condensing |
| Humidity at 25 °C / 77 °F | 0 to 100% relative humidity |
| Wireless communication | |
| EU | 868 MHz SRD/ISM band, SecureDataShot™ |
| US | 915 MHz ISM band, SecureDataShot™ |
| Certifications and compliance | |
| EU | CE, WEEE, Batteries directive |
| US | Certified to FCC and ISED regulations FCC ID: 2ATFX-100541 IC: 25087-100541 |
| Other | |
| Recommended storage conditions | Cool and dry, near normal room temperature |
| Construction | Robust design, sealed, IP68 and UL 50E Type 4X |
| Size and weight | 19 x 19 x 2.5 mm, 2.0 g |
| Lifetime | Up to 15 years in the default configuration and standard environment |
| Wireless Range | |
| Indoor | 25 m | 82 ft 40 m | 131 ft w/Cloud Connector (2nd Gen) |
| Indoor with Extender | 100 m | 328 ft 150 m | 492 ft w/Cloud Connector (2nd Gen) |
| Product numbers and datasheets | |
| 101675 | Counting Touch Sensor EU (No longer available for purchase) Datasheet Wireless Counting Touch Sensor EU 101675 |
| 101729 | Counting Touch Sensor US (No longer available for purchase) Datasheet Wireless Counting Touch Sensor US 101729 |
| 102071 | Counting Touch Sensor EU – QR code Datasheet Wireless Counting Touch Sensor EU QR 102071 |
| 102100 | Counting Touch Sensor US – QR code Datasheet Wireless Counting Touch Sensor US QR 102100 |
See the datasheet for detailed specifications.
