Developer Kit Cloud Connector

PN 101820


The Developer Kit Cloud Connector (DevCON) is an entry-level device that connects SecureDataShot™ enabled Sensors to the Cloud through a Micro-USB + Ethernet or through a single Power-over-Ethernet connection.

There is no need for configuration during installation. The DevCON will transparently relay traffic between all Sensors in range and the Cloud without the need for any user configuration or intervention.

Easy installation

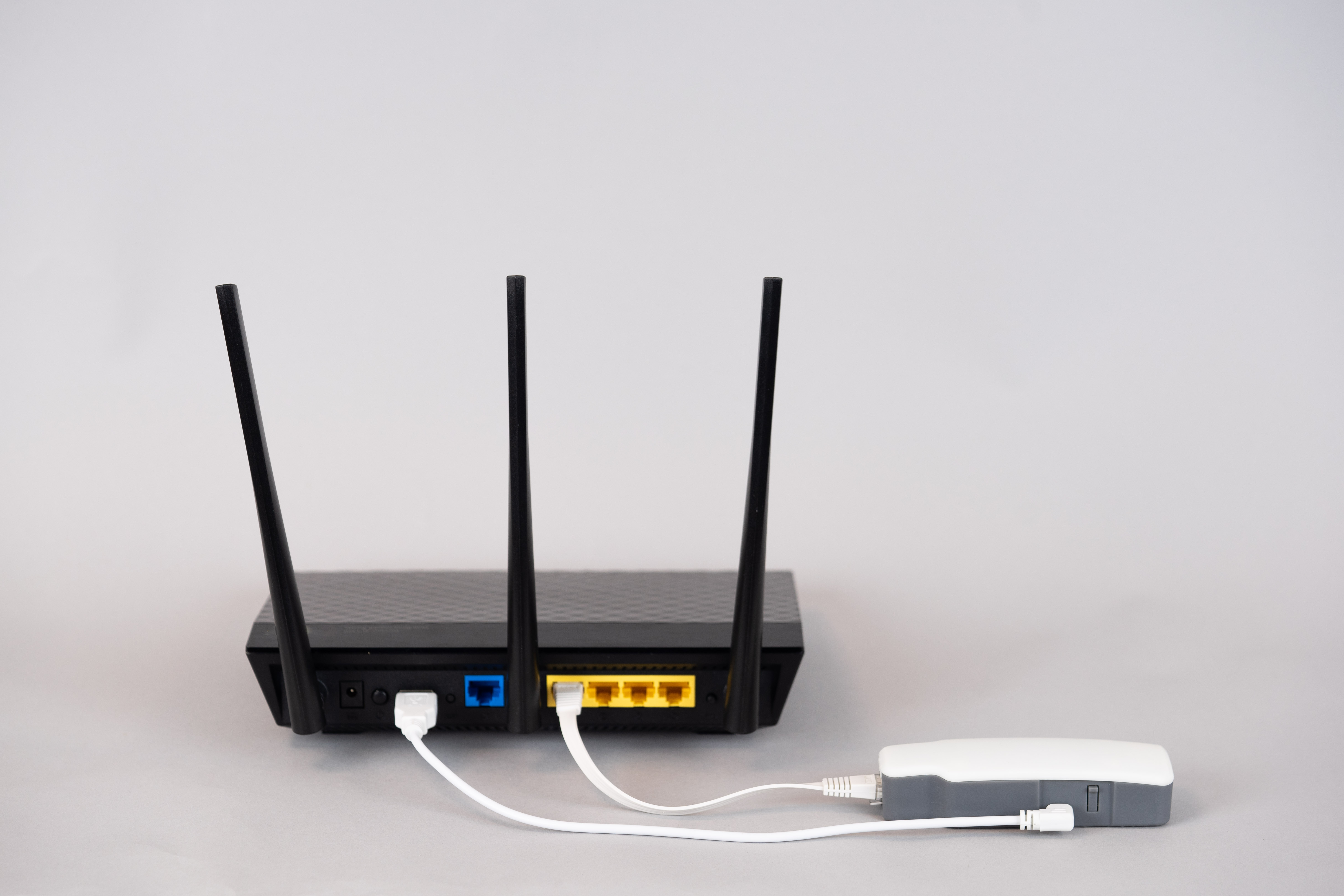

The DevCON can either be connected with a Micro-USB cable for power and a regular Ethernet cable for data or through a single Power-over-Ethernet connection. The latter would require a Power-over-Ethernet enabled switch or injector. See below images for references on how to connect the device.

DSC02429-2__1_.jpg  DSC02506__2_.jpg

The DevCON requires approximately 1 minute to boot and to connect to our Cloud. A stable Cloud Connection is indicated by a stable White LED. A Red LED indicates that the DevCON was unable to connect to our Cloud.


Specifications

Operating Conditions
Temperature 0 to 45 °C / 32 to 113 °F
Humidity 10 to 90% relative humidity, non-condensing
Other
Dimensions, weight 108 x 38 x 25 mm, 65 g
Power supply Power-over-Ethernet (PoE) - 36-57 V - IEEE802.3at Type 1
Micro-USB - 5V
Power consumption < 1 W
Frequency Sensor interface, EU: 868 MHz SRD/ISM band, SecureDataShotTM
Transmit Power < 80 mW
Interfaces 100Base-T - RJ-45

See datasheet for detailed specifications.

Documents

 Datasheet Developer Kit Cloud Connector 101820
