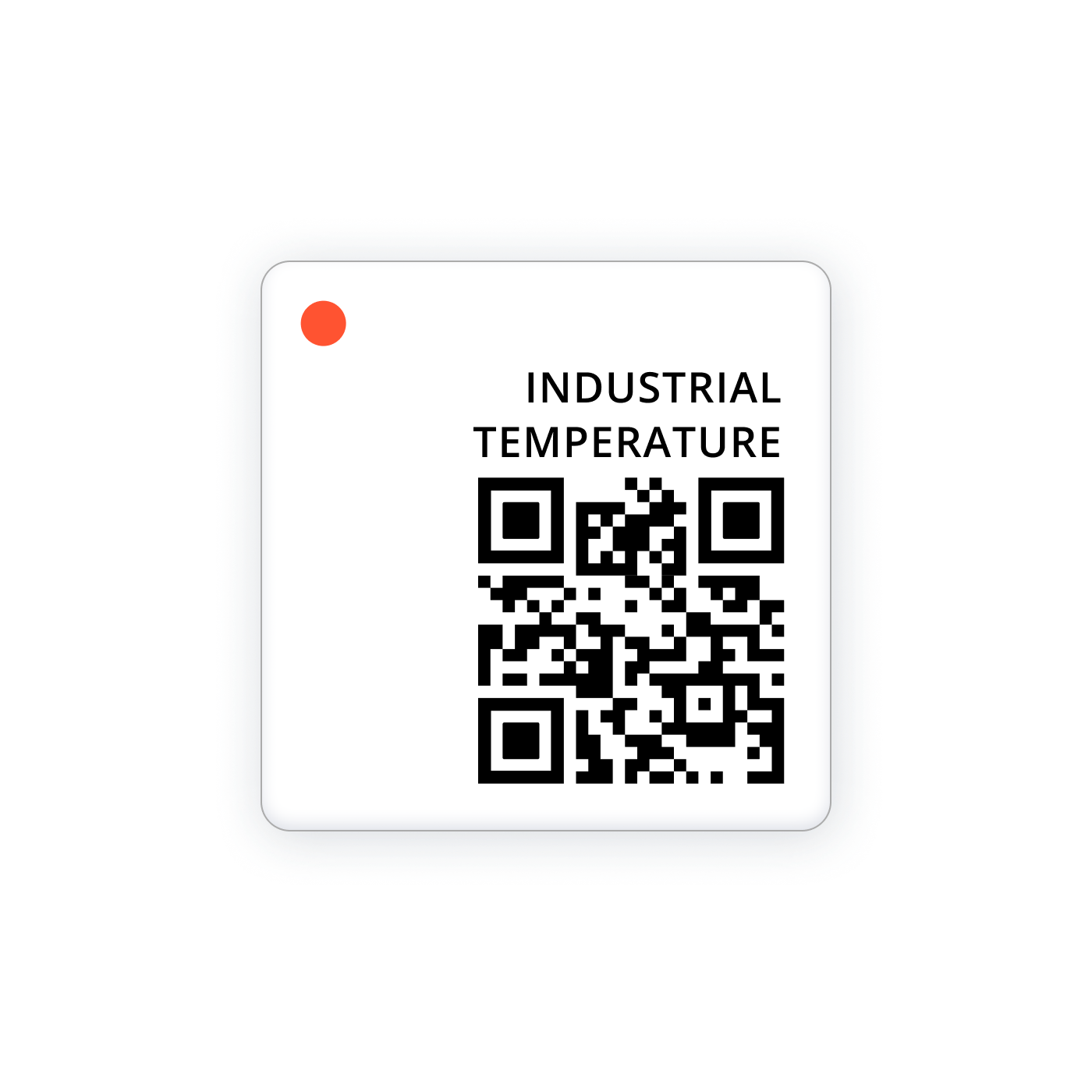

The Wireless Industrial Temperature Sensor measures the surrounding temperature and wirelessly transmits the result to nearby Cloud Connectors (gateways) at a predetermined Heartbeat Interval (HBI) via the SecureDataShot™ protocol. Cloud Connectors relay sensor data to the cloud via cellular or ethernet connectivity. From the cloud, the data can be integrated into other services using REST APIs and webhooks or viewed directly in DT Studio.
The Wireless Industrial Temperature Sensor uses HBI to transmit a message notifying the system that it is present and operational, which can be set to 15 min, 30 min, 45 min, or 60 min.
The Wireless Industrial Temperature Sensor has touch functionality for simple installation and use.
This sensor comes in two versions: EU (Product No. 101945) and US (Product No. 102134), each tailored to meet distinct regional certifications, compliances, and wireless communication requirements.
Datasheets
Datasheet Wireless Industrial Sensor EU 101945 (No longer available for purchase)
Datasheet Wireless Industrial Sensor US 102134 (No longer available for purchase)
Specifications
| Operating conditions | |
| Temperature | -40 to 85 °C / -40 to 185 °F |
| Humidity at 25 °C / 77 °F | 0 to 100% RH (non-condensing) |
| Wireless communication | |
| EU / US | 868 MHz SRD/ISM band / 915 MHz ISM band, SecureDataShot™ |
| Range | |
| Indoor / with Range Extender | up to 40 m | 131 ft / up to 150 m | 492 ft |
| Battery | |
| Battery type | Lithium |
| Replaceable battery | No |
| Lifetime | Up to 15 years in the default configuration and standard environment |
| Other | |
| Size and weight | 19 x 19 x 2.5 mm, 3.0 g / 0.75 x 0.75 x 0.11 in, 0.11 oz |
| Construction | Impact-modified acrylic film, sealed, IP68 and UL 50E Type 4X |
| Data Backfill | No |
