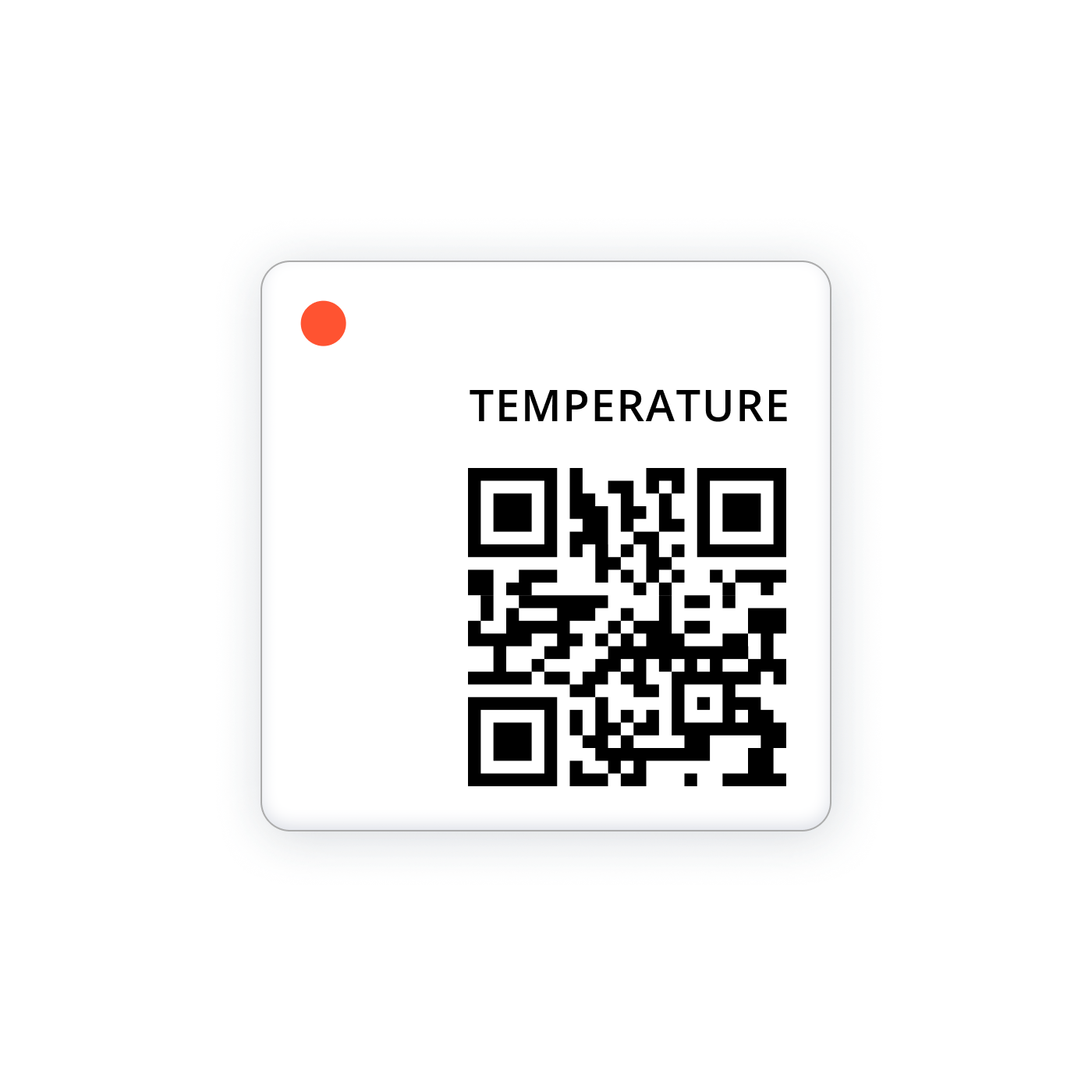

Temperature Sensor (2nd Gen)


The Wireless Temperature Sensor (2nd Gen) measures the surrounding temperature and wirelessly transmits the result to nearby Cloud Connectors (gateways) at a predetermined Heartbeat Interval (HBI) via the SecureDataShot™ protocol. Cloud Connectors relay sensor data to the cloud via cellular or ethernet connectivity. From the cloud, the data can be integrated into other services using REST APIs and webhooks or viewed directly in DT Studio.

The Wireless Temperature Sensor uses HBI to transmit a message notifying the system that it is present and operational, which can be set to 15 min, 30 min, 45 min, or 60 min.

The Wireless Temperature Sensor (2nd Gen) has touch functionality for simple installation and use.

This sensor comes in two versions: EU and US, each tailored to meet distinct regional certifications, compliances, and wireless communication requirements.

Datasheets

  Datasheet Wireless Temperature Sensor (Gen 2) EU 102150 (No longer available for purchase)

  Datasheet Wireless Temperature Sensor (Gen 2) US 102152 (No longer available for purchase)

Specifications

Operating conditions
Temperature -40 to 85 °C / -40 to 185 °F
Humidity at 25 °C  / 77 °F 0 to 100% RH (non-condensing)
Wireless communication
 EU / US 868 MHz SRD/ISM band / 915 MHz ISM band, SecureDataShot
Range
Indoor / with Range Extender up to 40 m | 131 ft / up to 150 m | 492 ft
Battery
Battery type Lithium
Replaceable battery No
Lifetime Up to 15 years in the default configuration and standard environment
Other
Size and weight 19 x 19 x 2.5 mm, 2.0 g / 0.75 x 0.75 x 0.11 in, 0.07 oz
Construction Impact-modified acrylic film, sealed, IP68 and UL 50E Type 4X
Data Backfill No
