The Wireless Temperature Sensor with Data Backfill and Mounting Bracket periodically measures Temperature (°C/°F) and wirelessly transmits the result to nearby Cloud Connectors (gateways) at a predetermined Heartbeat Interval (HBI) via the SecureDataShot™ protocol. Cloud Connectors relay sensor data to the cloud via cellular or Ethernet connectivity. From the cloud, the data can be integrated into other services using REST APIs and webhooks or viewed directly in DT Studio.

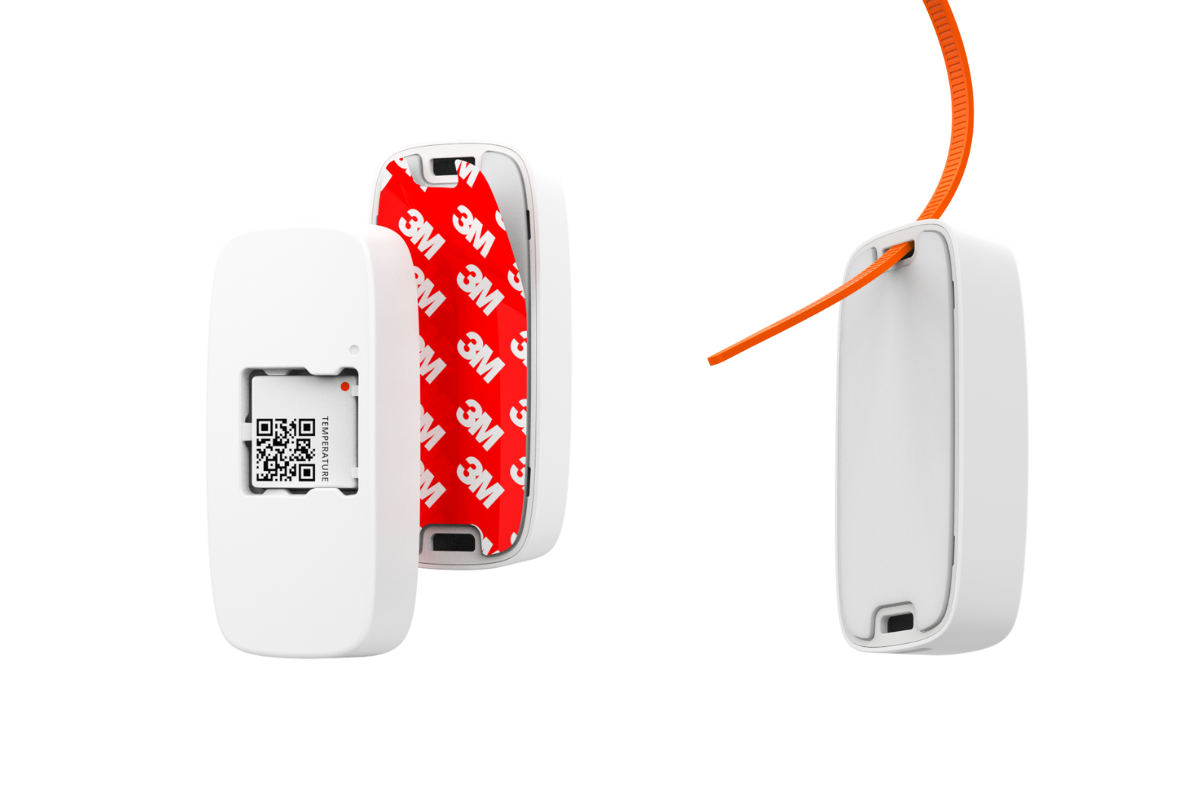

Sensor comes equipped with a Mounting Bracket - Temperature Sensor, which is a sensor accessory designed to enhance the wireless range of Wireless Temperature sensors by up to 150 meters (492ft).
It features an internal antenna that passively boosts the radio signal, ensuring stronger connectivity between the sensor and the gateway, and is especially effective in metal-rich environments such as refrigerators, freezers, or installations on metal surfaces, where signal interference is common.
The Wireless Temperature Sensor uses HBI to transmit a message notifying the system that it is present and operational, which can be set to 5 min, 15 min, 30 min, 45 min, or 60 min.
This sensor comes in two versions: EU (Product No. 103056) and US (Product No. 102948), each tailored to meet distinct regional certifications, compliances, and wireless communication requirements.
Datasheets
Wireless Temperature Sensor (3rd Gen) EU/US
Mounting Bracket - Temperature Sensor
Sensor specifications
| Operating conditions | |
| Temperature | -40 to 85 °C / -40 to 185 °F |
| Humidity | 0 to 100% RH (non-condensing) |
| Wireless communication | |
| EU / US | 868 MHz / 915 MHz ISM band, SecureDataShot™ |
| Range | |
| Indoor / with Mounting Brackets | up to 40 m | 131 ft / up to 150 m | 492 ft |
| Battery | |
| Battery type | Lithium |
| Replaceable battery | No |
| Lifetime | Up to 15 years in the default configuration and standard environment |
| Other | |
| Size and weight | 19 x 19 x 3.5 mm, 3.0 g / 0.75 x 0.75 x 0.14 in, 0.11 oz |
| Construction | Robust design, sealed, IP68 |
| Data Backfill | Yes |
Mounting Bracket specifications
| Range | |
| Indoor | 2x Wireless Range - up to 150 meters / 492ft |
| Mechanical properties | |
| Size | 74.5x33.5x18.8mm / 2.93x1.32x0.74 in |
| Weight | 17 grams / 0.6 oz |
| Material | ABS PA-757 |
| Mounting Method | Adhesive or zip-tie |
| Adhesive | 3M LSE-110WF |
