There are two supported interactive card types to display and visualize occupancy data from sensors: Single sensor cards and Multiple sensor cards.
What you need
-
Permission: A user role of Project Developer or higher.
Type of occupancy
Occupied desks
Single sensor card
To show desk occupancy readings on a single sensor card, you can use our Desk Occupancy Sensor.

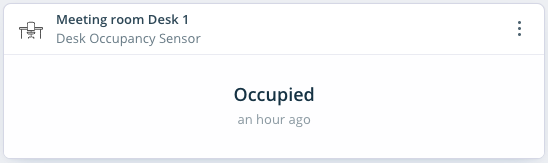

In a 1x1 view, the card will display the current desk occupancy status (Occupied/Not occupied).
Attention!
The sensor will typically detect if a desk is occupied within 5-10 minutes of the person arriving at the desk. Similarly, it will typically detect if a desk is not occupied within 5-10 minutes of the person leaving.
If expanded, the graph type displayed on the card will depend on the type of desk occupancy view you choose. By clicking the three dots, you can change the graph to:
- Histogram
- Occupied/Not Occupied

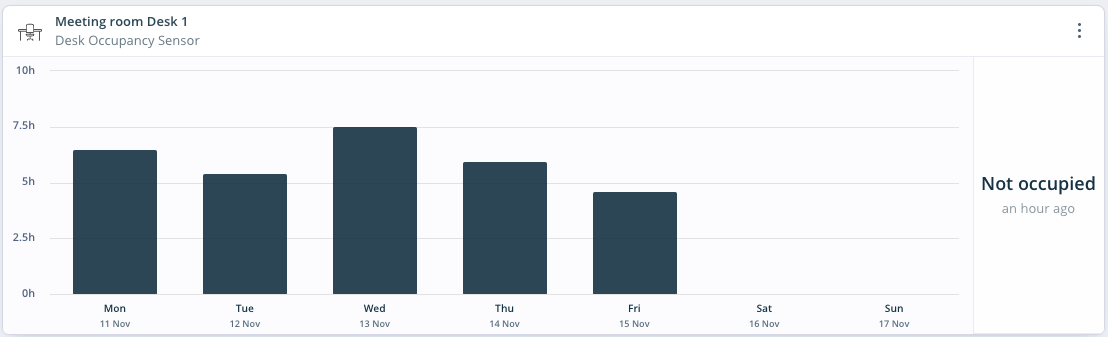

Histogram shows historical desk occupancy for the chosen time frame, which you can adjust in the upper-right corner of the dashboard. To toggle the display of the sensor’s current occupancy status on the right side of the graph, click the three dots and select "Hide/Show Sensor Status" on the upper right side of the card.

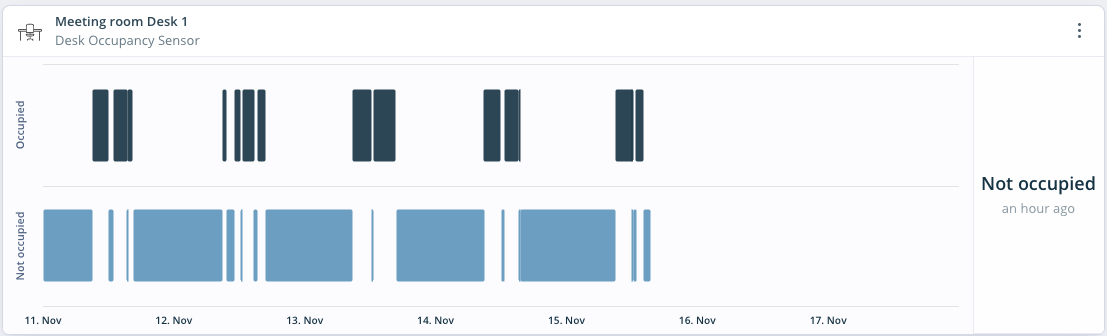

Occupied/Not Occupied graph shows the total duration of occupancy on specific dates within a selected time frame.
Multiple sensor card

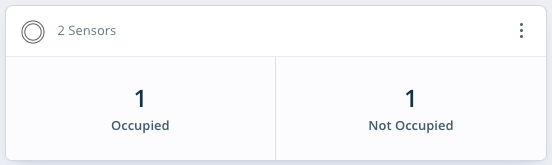

We use Occupied Desks dashboard cards to display desk occupancy readings from multiple sensors.
Multiple sensor cards can display desk occupancy data from only Desk Occupancy Sensors:
| Card | Sensor type allowed | Number of sensors allowed |
|---|---|---|
| Occupied desks | Desk Occupancy Sensors | up to 1000 sensors |

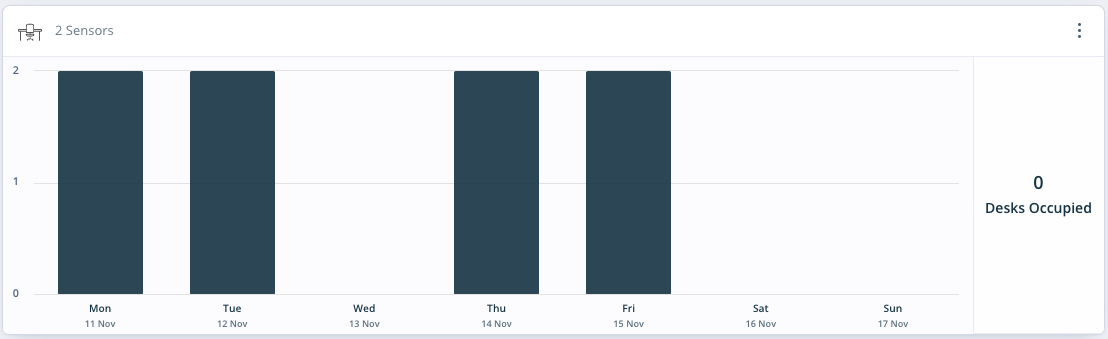

A Multiple sensor card always displays Histogram view, regardless of its size and the time frame.
Occupied rooms
Single sensor card
To show room occupancy readings on a single sensor card, you can use our Motion Sensor.

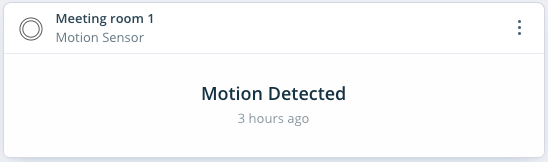

In a 1x1 view, the card will display current room occupancy status (Motion/No motion status).
If expanded, the graph type displayed on the card will depend on the type of room occupancy view you choose. By clicking the three dots, you can change the graph to:
- Motion/No motion
- Heatmap
- Histogram

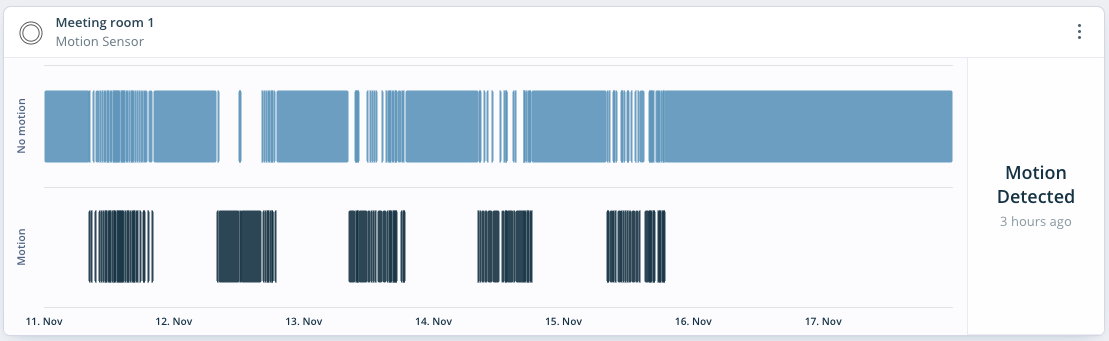

Motion/No Motion graph displays the duration of room occupancy on specific dates and times within a chosen time frame.

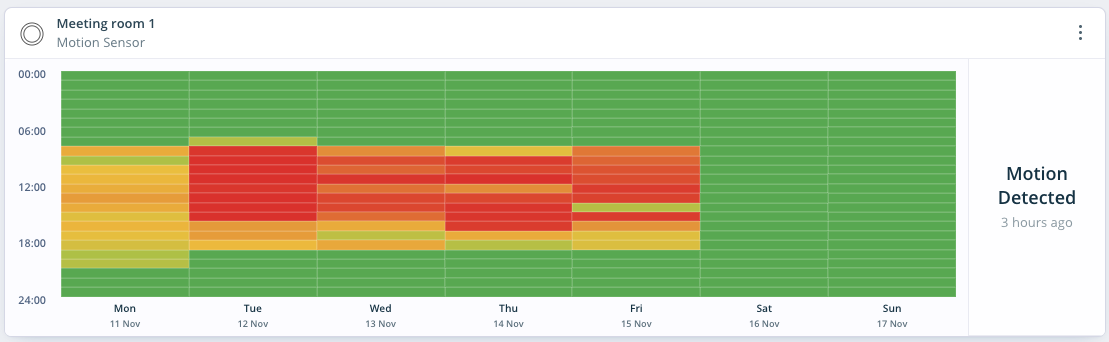

Heatmap visually represents room occupancy data using colors to show activity patterns over a specified timeframe. The x-axis displays dates, while the y-axis represents hours. Colors indicate activity levels:
- Cool colour tones (green) = low or no activity
- Warm colour tones(yellow/red) = higher activity
The scale ranges from 0 to 60 minutes, where 0 to 30 minutes indicate low or no activity, and 31 to 60 minutes means higher activity levels.
Histogram shows historical room occupancy duration for the chosen time frame, which you can adjust in the upper-right corner of the dashboard. To toggle the display of the sensor’s current motion detection status on the right side of the graph, click the three dots and select "Hide/Show Sensor Status" on the upper right side of the card.
Multiple sensor card
We use Occupied Rooms dashboard cards to display room occupancy readings from multiple sensors.
Multiple sensor cards can display room occupancy data from Motion Sensors only:
| Card | Sensor type allowed | Number of sensors allowed |
|---|---|---|
| Occupied rooms | Motion Sensors | up to 100 sensors |
Multiple sensor card always displays current Occupied/Not Occupied status, regardless of its size and the time frame.
Creating an Occupancy card
To add a new Occupancy card, select Create new card:
- Choose card type (single or multiple sensors)
- Choose a name for the card (optional)
- Pick sensor(s)
- Set card size
- Click Add to dashboard
You will find the newly created card in the first available position on the dashboard.
